Stainless steel 35L type drying machine centrifugal dewatering dryer factory direct supply heavy hot air Dehydration dryer

  • 1 - 2 Pieces
    $800.00
  • 3 - 9 Pieces
    $700.00
  • >=10 Pieces
    $500.00
Model Number:
MX-35L MX-70L
Lead Time:
Quantity(Pieces) 1 - 1 2 - 10 >10
Est. Time(days) 10 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Drying Oven
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
MX-HONGHAO
Voltage:
220-380V
Power(W):
3KW
Dimension(L*W*H):
850*700*900MM
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas, Online support
Application:
metal alloy Dehydration Dryer
Usage:
Metal Surface Polishing
Name:
tumbler vibratory
Power:
3KW
SIZE:
850*700*900MM
Weight:
60KG, 100KG
Function:
umbling deburring polishing vibrating polisher finishing machine
Color:
Request
Supply Ability
Supply Ability:
1500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden packaage,if need Export fumigation,just let us know
Port
ningbo
Lead Time :
Quantity(Pieces) 1 - 1 2 - 10 >10
Est. Time(days) 10 15 To be negotiated
Video Description
Product Parameter

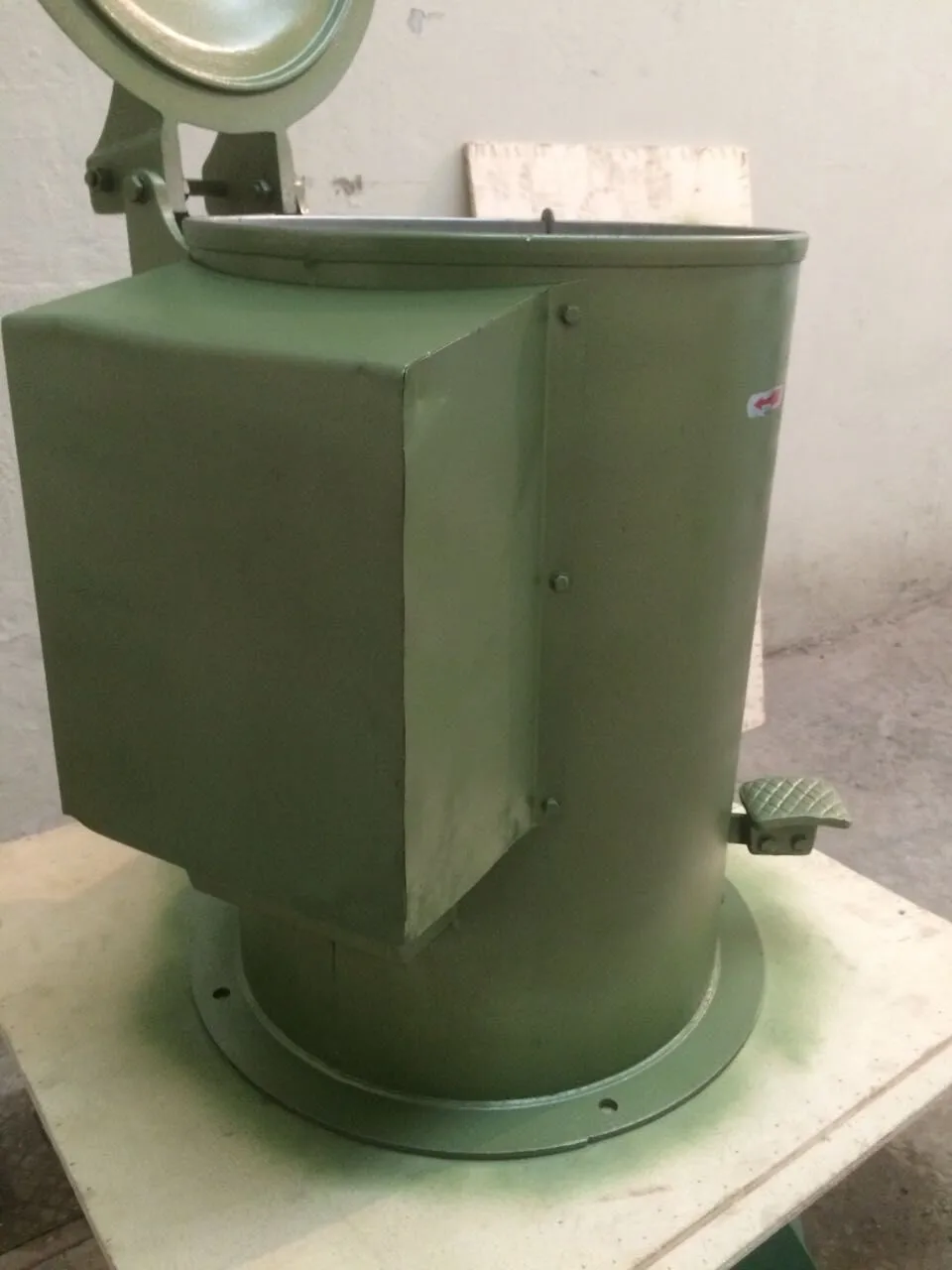

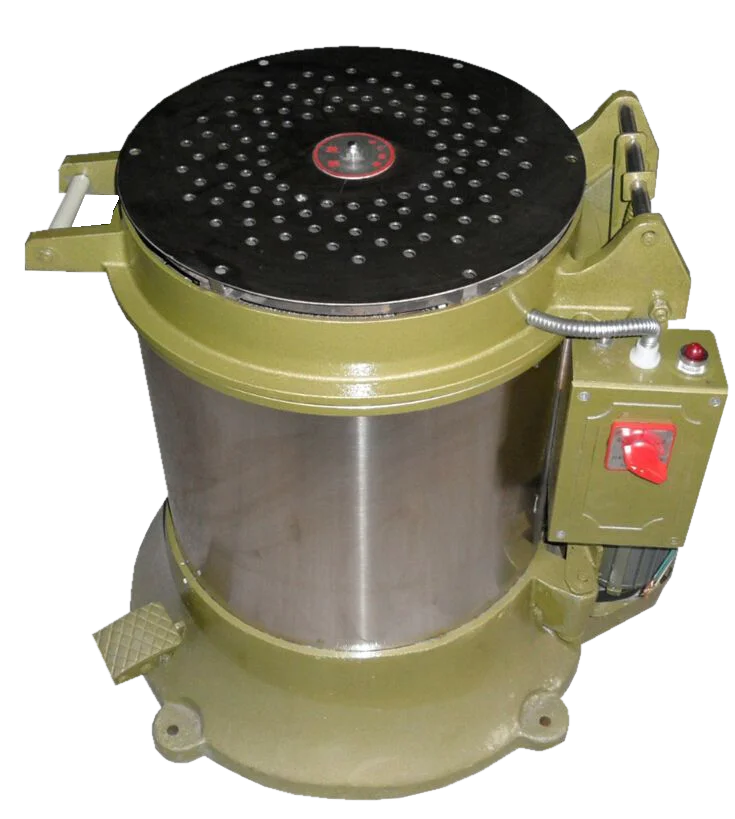

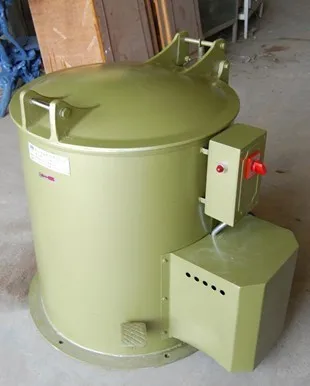

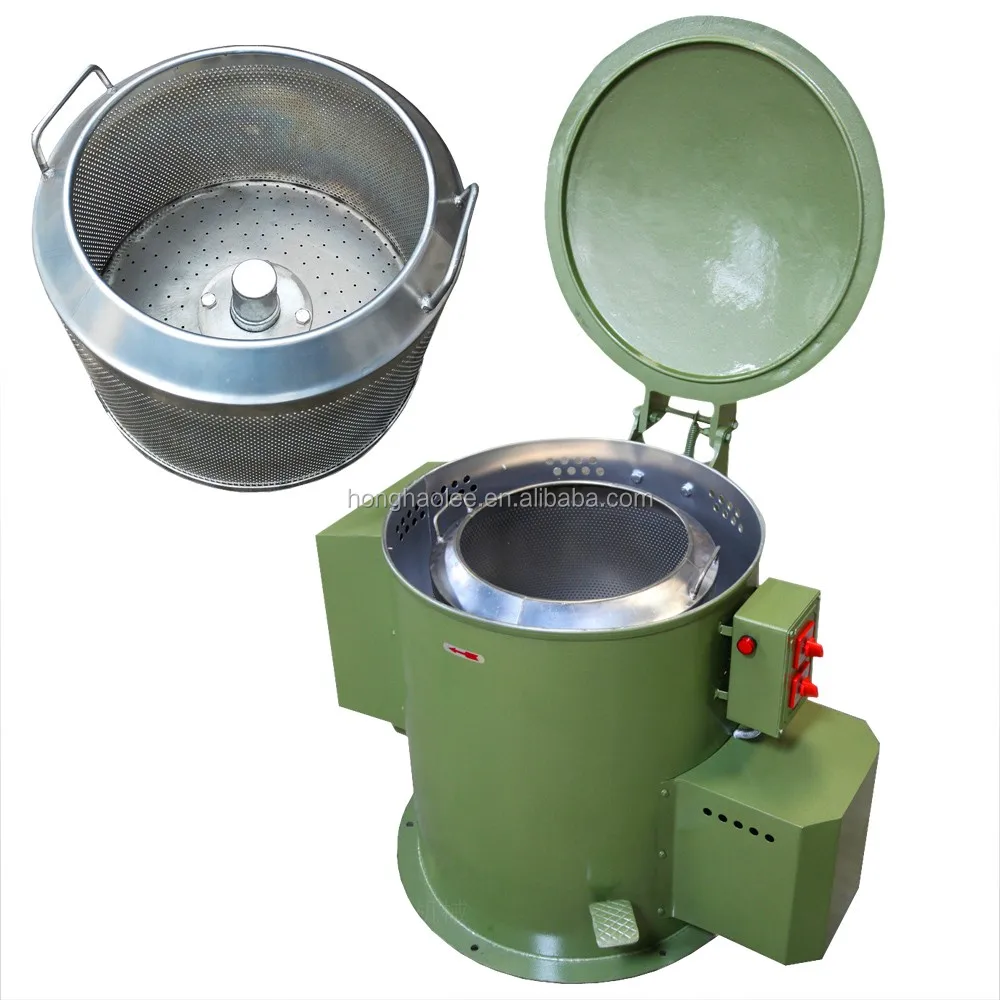

Features of the centrifugal dryer:
     1. Using the principle of centrifugal drying and hot air drying, the drying efficiency is high;
     2, using the foot brake device, you can quickly stop the drum.

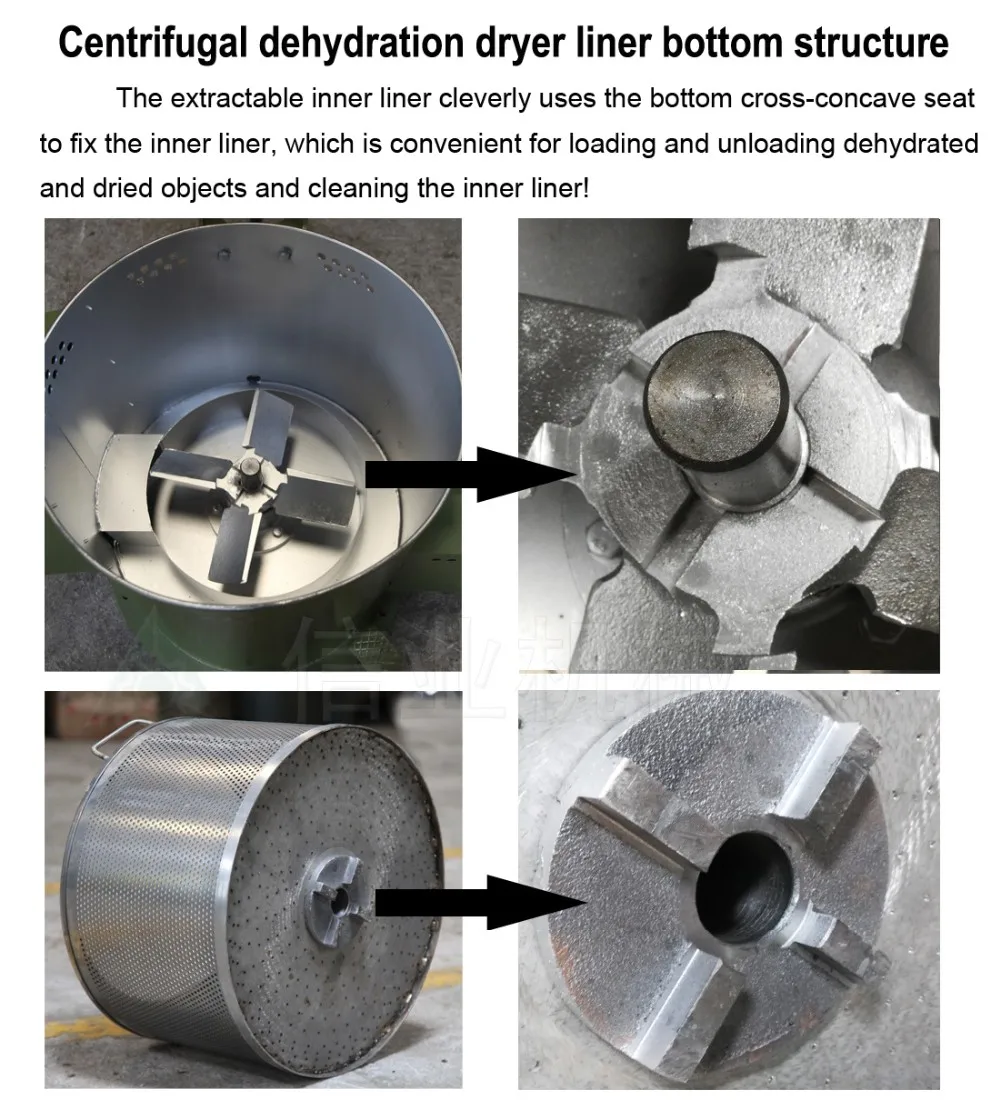

     3. The dewatering basket is made of stainless steel and has a long service life.
     4, can be installed according to customer requirements, timing, temperature control, frequency control and other optional features.

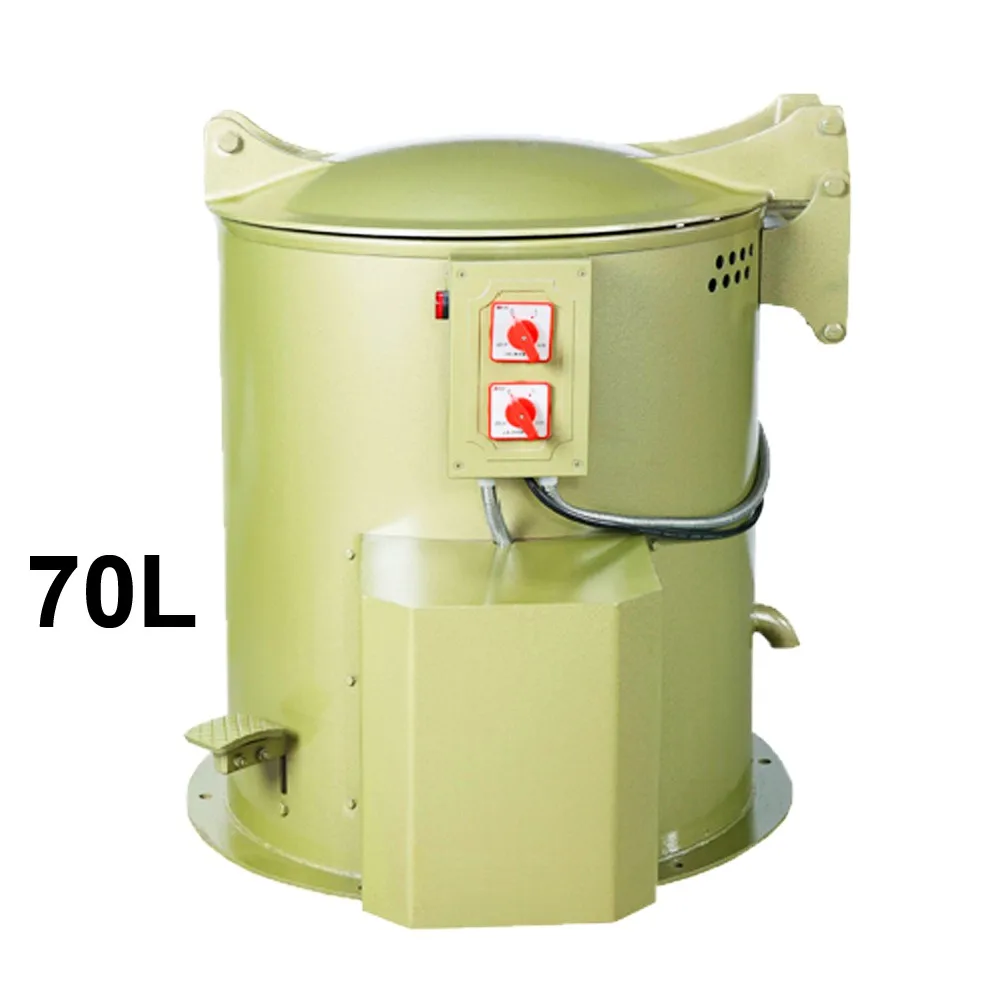

Centrifugal dryer specifications:


Model
Maximum load
Heater power
rotate speed
Power
Horsepower
Dimension       (mm)
Inside the bucket size(mm)

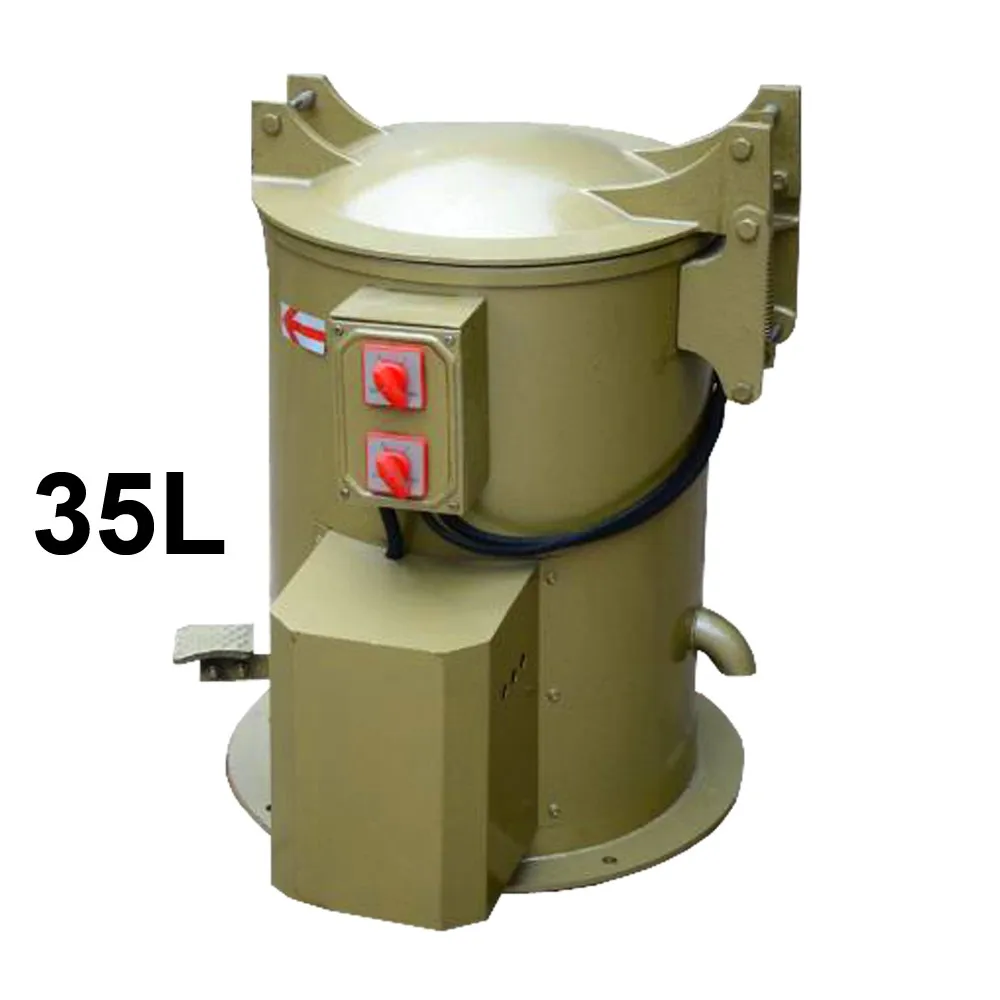

35L
35KG
3KW
630 rpm
0.75 KW
1 HP
850×700×900
400×300
70L
70KG
3KW
530 rpm
 1.1 KW
1.5 HP
910×750×1000
500×400
Product Description

The purpose of the centrifugal dryer:
                         Centrifugal dryer (alias: drum dryer, hot air dryer, hot air centrifugal dryer) is a relatively economical fast drying equipment, easy to operate; suitable for drying and dewatering of small hardware, such as electroplated parts, clock parts , tableware, springs, screws, plastics, electronics, etc.

 we have two size: 30L , 60L ,Usually people said 35L and 70L,but they are same.

manual how to use

Dehydration dryer manual

A.The upper switch is a rotary motor switch, the lower switch is a heater switch, the switch is a motor device, and the other side is a heating device

 B.the use of method
1, check the power supply of the machine, the fixed position of the cylinder is correct.
2, open the upper cover, in the cylinder into the workpiece.
3, close the lid, start the rotary switch and heating switch for dehydration drying.
4, dehydration drying, turn off the cylinder switch and heating switch, and then step on the brake plate, so that the cylinder completely stopped.
5, open the lid, put forward the cylinder, pour the workpiece.
C .matters needing attention
1, before use, first turn the cylinder running, check whether the steering is the same as the outer shell of the arrow is the same as the indicator, electric wire
2, the workpiece, the workpiece should be evenly distributed in the cylinder,
3, with the foot brake plate, be sure to turn the switch in the closed state.
4, dehydration machine can be more independent of the centrifugal drying, but can not shut down the motor heating alone for drying.
5, should be regular inspection, maintenance, regular added to the bearings of high quality lubricating oil, to maintain the good performance of the dewatering machine.
By the way Should also pay attention to the following three questions:
First, to be fixed, anti Mobile
Dehydration drying machine speed is high, easy to move, should be fixed before use, the usual practice is: at the bottom of a layer of damping rubber or waste tires; can also be used to lay the foundation screws.
                     one the product should be evenly distributed
Dehydration (deoiling) drying parts should be evenly placed in the vicinity of the dehydration basket, do not pile up in the middle, to prevent centrifugal force imbalance, resulting in severe shaking machine. For those parts that are easy to overlap, or the inner hole (inner diameter) of the more parts, you can stop halfway, flip the parts, and then start the machine, so as to effectively prevent water retention.
                   two, do not over
For safe operation, dehydration (deoiling) drying of parts with no more than 80% of the volume of dehydration basket is appropriate.

Our Brand

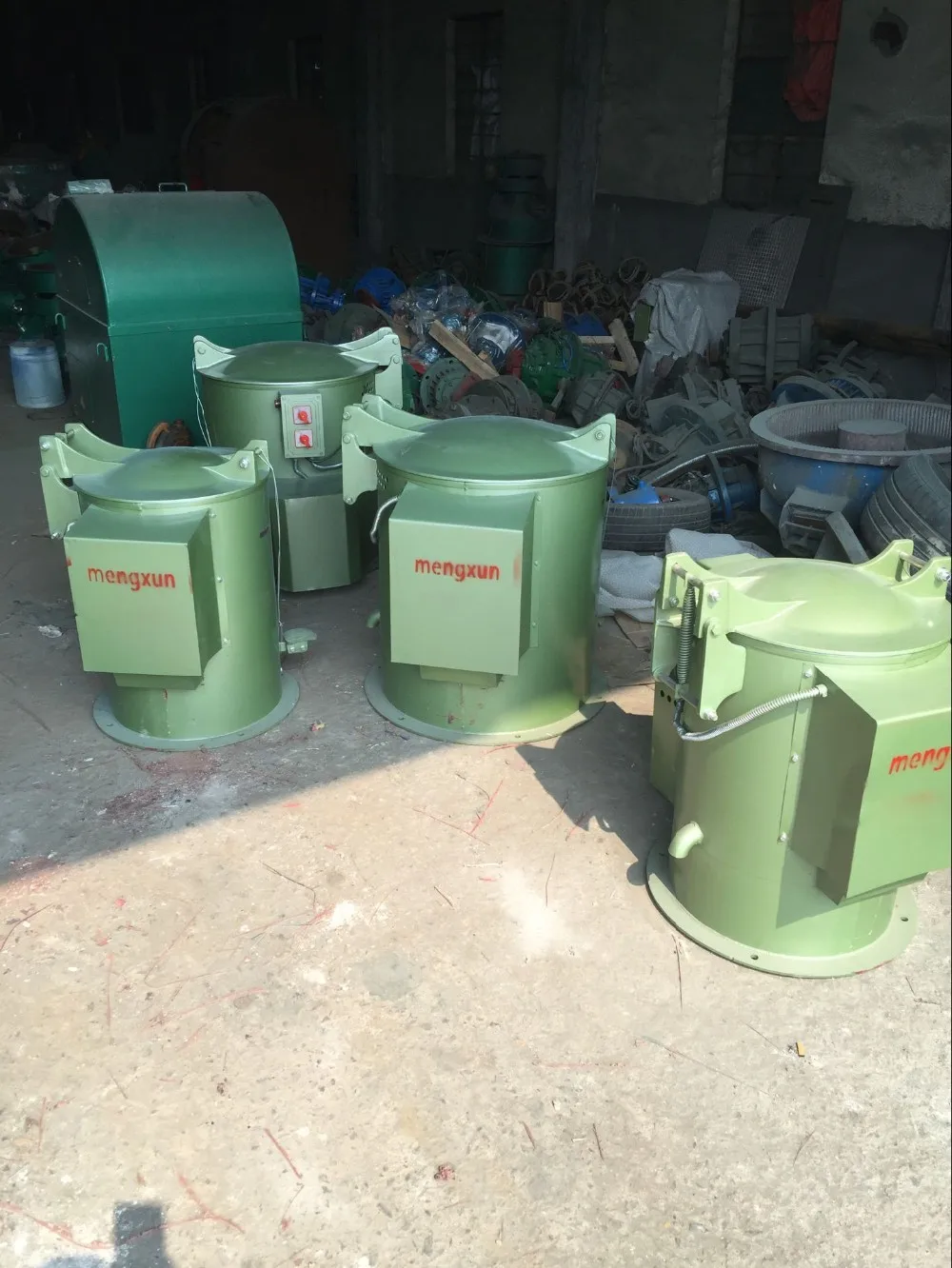

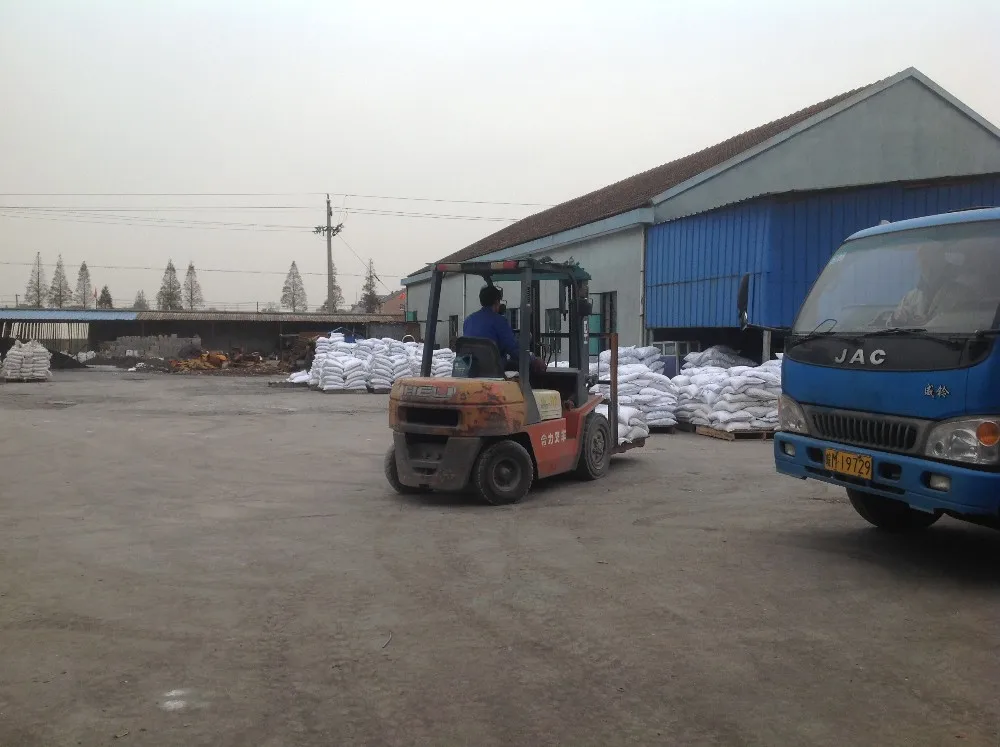

Our factory

quality best

price: cheapest

Original: china

Voltage:220v,380v

we had saled to peru,mexico,poland,Portugal, Russia, New Zealand, Ecuador, Malaysia, Spain

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine with video

* if  need Engineers available to service machinery overseas.

our mexico General agent--rafael

also can contact our rafael office ,if you are in mexico markets or near markets.

Packing & Delivery
Packaging
Size
93*63*101,0.59cbm
Weight
100kg



Packaging Details

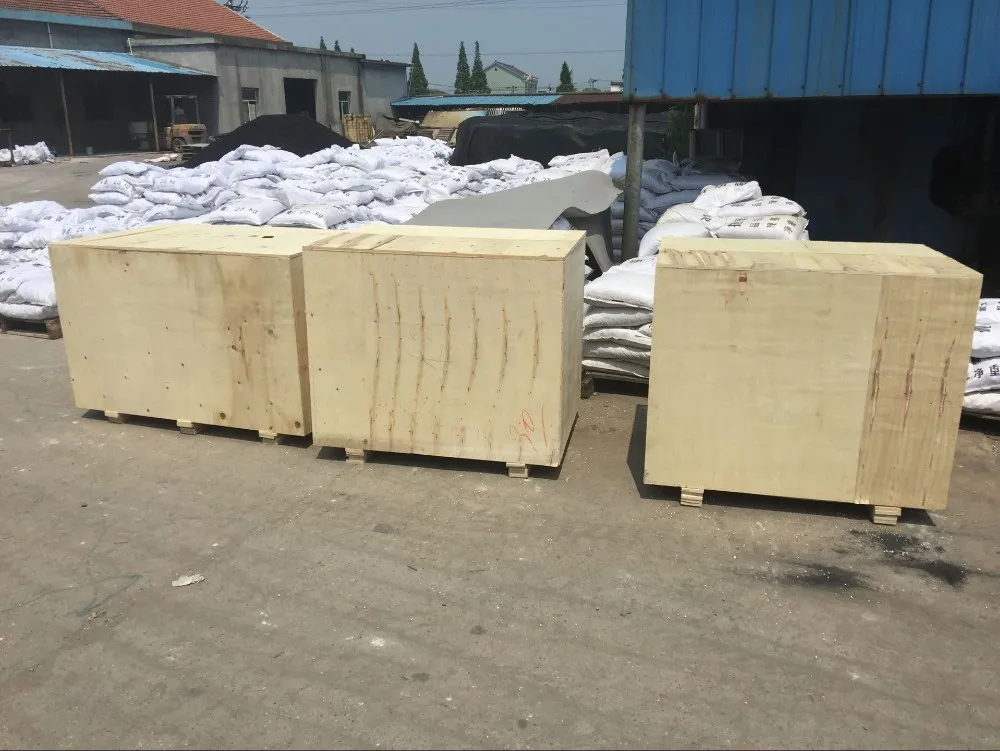

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.we put polishing stone in the wooden to save shipping fee to meeting customer's requests.
Customs code :84211910
Packaging
Size
93*63*101
Weight
100kg



Packaging Details

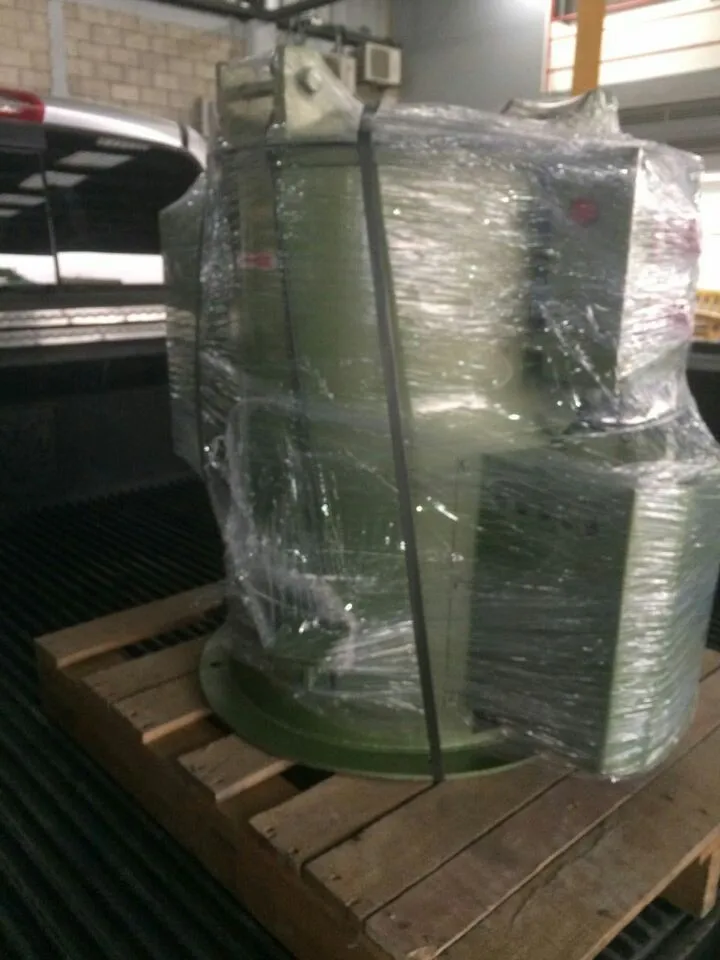

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
for this customer ,
Customs code  :84211910
Related Products

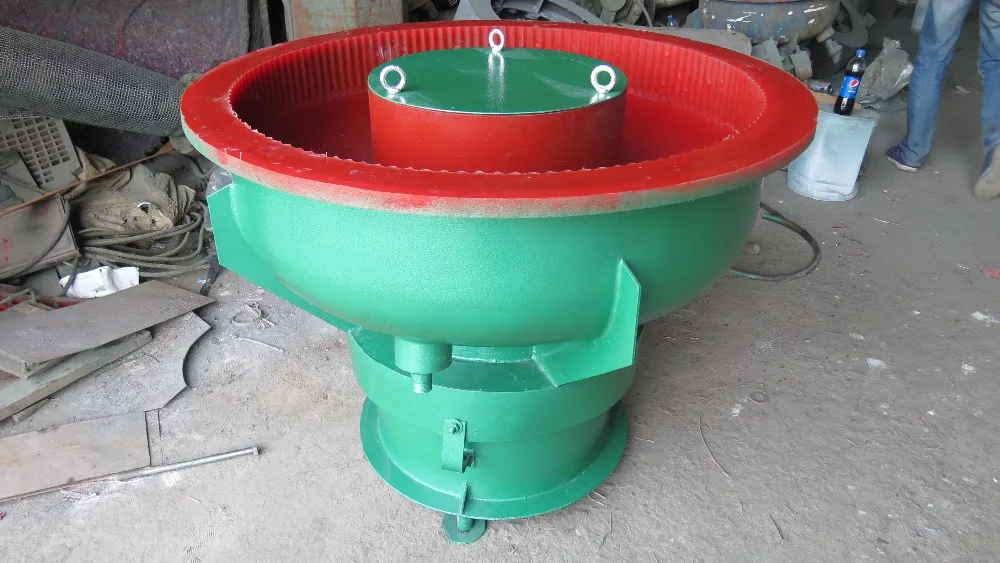

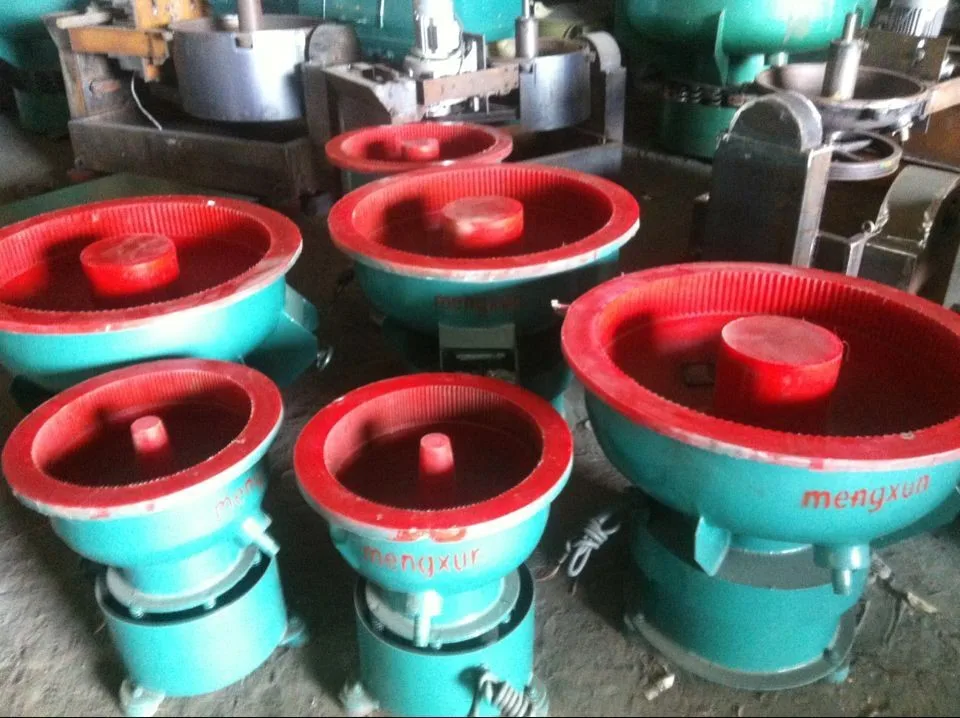

vibrations griding machines

91.8% Response Rate

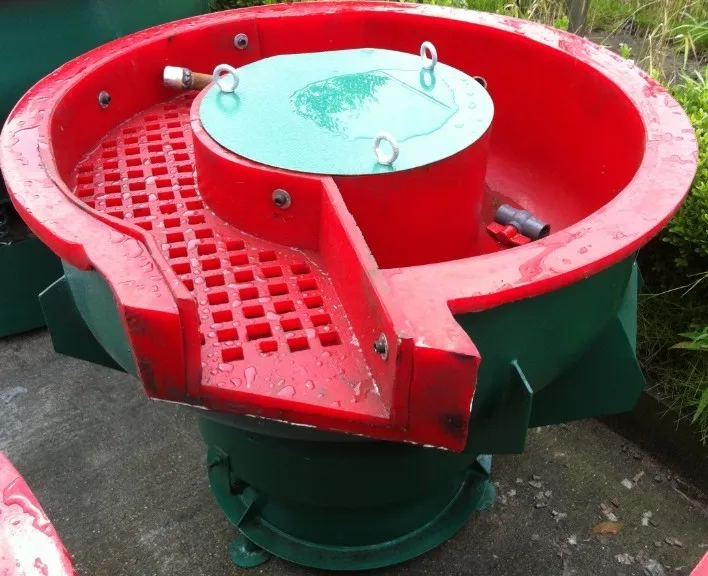

Eddy Polishing Machines50L 120L
